BLUE SEA SYSTEMS

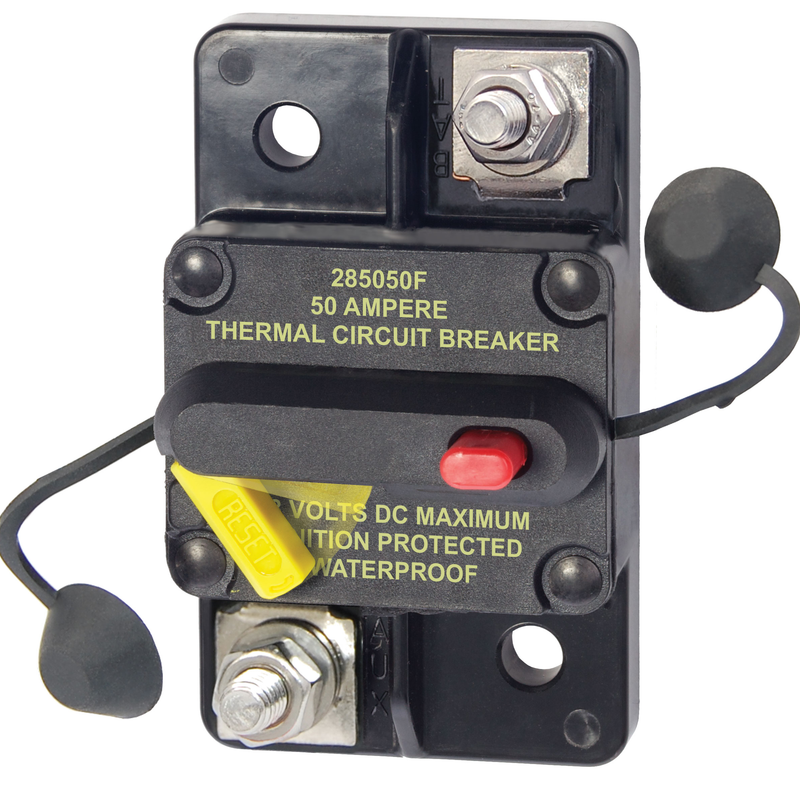

BLUE SEA SYSTEMS 285-Series Circuit Breaker - Surface Mount 50A
SKU: 1204344
$52.87
BLUE SEA SYSTEMS 285-Series Circuit Breaker - Surface Mount 50A
Features:
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit*
- "Trip Free" - cannot be held closed after trip
* Do not use as a switch where high inrush currents are expected.
Specifications:
- Amperage: 50A
- Maximum Voltage: 48V DC
- Mounting: Surface Mount
- Circuit Breaker Type: Thermally responsive Bi-metal blade
- Terminal Stud: M6 (accepts 1/4" Ring Terminal)
- Terminal Stud Torque: 50 in-lb (5.65 Nm)
- Interrupt Capacity (The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage): 3000A @ 48V (Achieved using SAE J1625)
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Circuit Breaker Class: Type III - switchable/manual reset - trip free
- Weight: 0.50lb (0.23 kg)
