SCANSTRUT Atmos 12V Integrated Air Station
SKU: 9180300
SCANSTRUT Atmos 12V Integrated Air Station
Revolutionize your boating experience.
Our in-built air station is here to maximize quality time on the water.
ATMOS, by Scanstrut, will revolutionize your family’s boating experience. This beautifully designed, in-built air station is here to maximize quality time on the water.
At the push of a button, ATMOS is ready to inflate your paddleboards, towables and more: simply set the target pressure and let ATMOS do all the hard work.
Utilizing Scanstrut’s outdoor technology DNA, this is waterproof on-board air that’s engineered to thrive in the harsh marine environment.
The Design:

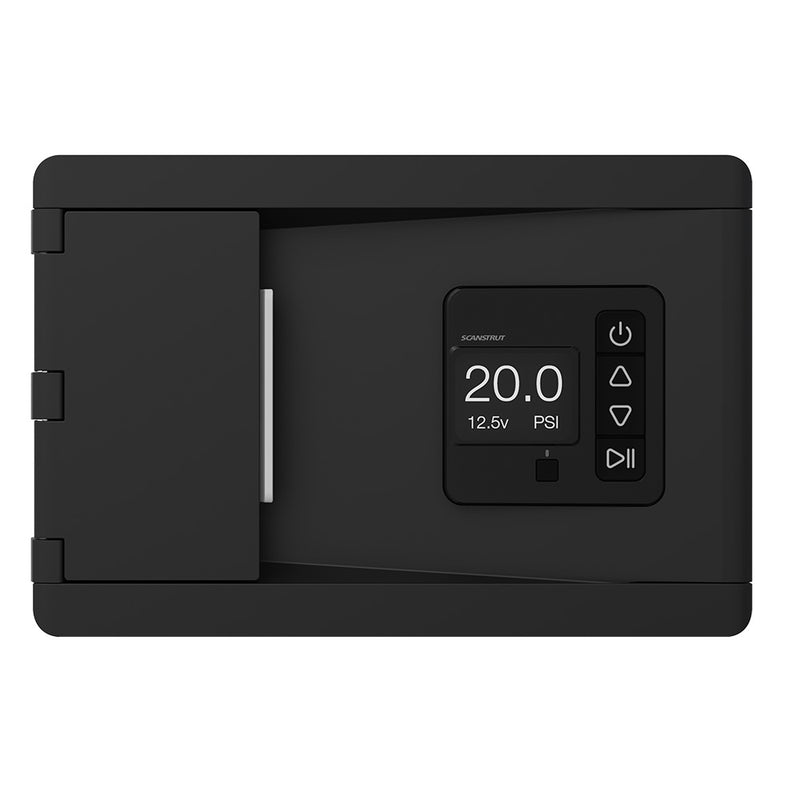

The Front
Take control with our Soft Touch TPE buttons and cutting-edge LCD display. Specially crafted for the challenging marine environment, the buttons feature a non-slip texture that provides a tactile surface, even with wet hands and the bright, wide viewing angle display means you can have a great view from any place on the boat, even on the brightest days. The display also features a helpful Live Voltage readout, so you can easily keep track of your boat's battery health.

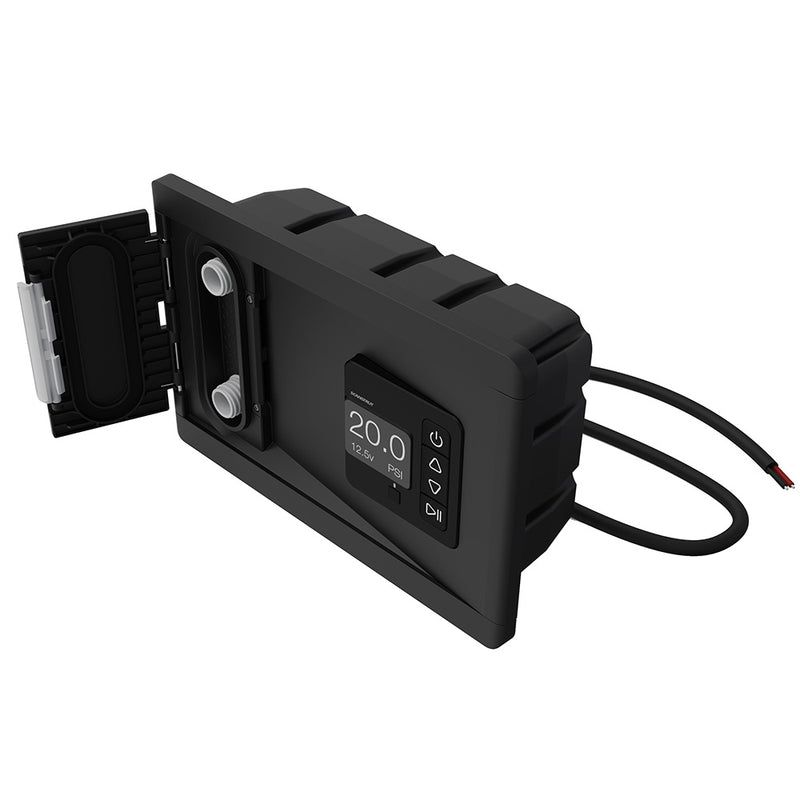

The Back

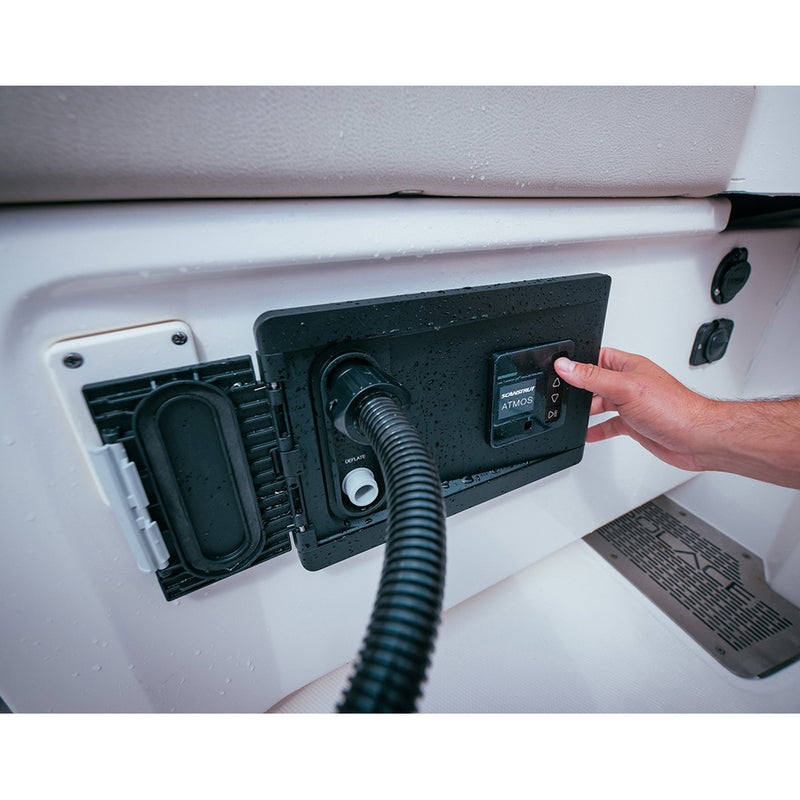

Easily integrate ATMOS into your boat with its compact and shallow design. The versatile airstation can be installed in a variety of locations, including seating, consoles, or by the swim platform, making it convenient and accessible wherever it's needed. Easily installed into any panel using 10 self-tapping screws, with a foam gasket included to ensure a secure and waterproof fit.
The Side
The minimum cavity depth required is 110mm/4.33", and it can be installed at an angle ranging from +10º to -30º from vertical. The power cable length is 500mm (20”) with a wire gauge of 2.0mm2 (14 AWG), please note that there are no end-user serviceable parts.
Innovative Two-Stage Pump
ATMOS with Brushless Technology - Unleash the power, efficiency, and reliability of our innovative two-stage pump system designed to meet the rugged demands of the marine environment. The first stage features a highly efficient fan motor, followed by a robust piston pump, both designed specifically for the rugged demands of the marine environment. ATMOS, combines both pumps into one waterproof, easy-to-use onboard air station, automatically switching at 1.1PSI from the HVLP to the HPLV pump.
Stage 1: High-volume, low-pressure (HVLP)
Designed to move large volumes of air with minimal pressure. They are typically used for inflating larger inflatable objects like kayaks, large tubes and bathing platforms as they can quickly inflate the object to the desired pressure.
Stage 2: High-pressure, low-volume (HPLV)
Designed to generate a high level of pressure with a low volume of air. Perfect for inflating smaller toys like SUPs, inflatable kayaks, and tubes that require a higher level of pressure for optimum performance.
What's in the Box?
Sun Cover
Supplied with a heavy-duty sun cover, ATMOS is protected against the long-term damaging effects of the sun, salt, and other elements. It comes fitted as standard with a black cover, with white available as an accessory. With our sun cover, you'll be able to keep your ATMOS looking its best for longer.
White Cover - P/N SC-AOB-A2-SC1
2.5M Hose (or optional 3.6M (12ft) hose)
When inflating a paddleboard on a boat, the most stable location for the pump is usually on the deck or another flat surface. However, this location may not be close enough to the paddleboard to allow for easy inflation if the hose is too short. A longer hose can help to bridge this distance, allowing you to move the pump away.
6x Hose Attachments
Supplied with 6 different adapters including; Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves, and 805 Valve. You have everything you need to inflate and deflate your toys with ease, no matter what type of valve it has.
Our Testing Ethos
Our testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, we design our products to be able to thrive in the harshest of outdoor environments.
Before any product is released, it must pass through our rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.
Our commitment to quality has earned us the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about our testing program and certifications, please feel free to reach out to us.
Technical information
- Part Number: SC-AOB-A2
- Waterproof rating: IPX6 waterproof front and back
- Input voltage: 12V Battery system (10-14V)
- Standby current draw: 0.01W Max
- Max Pressure output: 20 PSI / 1.37 BAR
- Max current draw: 12A (140W)
- Max volume of airflow 0-1 PSI: 350 LPM/12.3 CFM
- Max volume of airflow 1-20 PSI: 70 LPM/2.5 CFM
- Two-stage pump: Stage 1 = 0 -1 PSI, Stage 2 = 1.1 - 20 PSI
- Ambient operating temp: -20º to +50 ºC
Environment:
- Environmental protection: Conformal coated electronics and PCB
- Brushless Technology: Featuring high-performance brushless motors designed for the marine environment.
- Protection: Reverse polarity, short-circuit, under voltage, overload, over temp.
- Certifications: CE, ROHS, UN ECE R10, UKCA
- Cable length: 500mm (20”) 1.5mm2 16 AWG
- Waterproof rating: IPX6 front and rear (door closed)
- Airflow: In and out of the front of the unit only. The rear of the unit sealed
Safety:
- Max run time: 25 minutes (3 SUPs)
- Under protection: Soft motor start
- Standby mode: No activity auto shut off - 5 mins
- Max pressure output: 20 PSI / 1.4 BAR
- Warranty: 2 Year warranty
- Auto shut-off: At target pressure
- Ambient operating temp: -20º to +50 ºC
- Ignition Protection: ATMOS SC-AOB-A2 meets the ISO 8846 and SAE J1171 test standards for Ignition Protection.
Typical Inflate / Deflate Stats
Featuring next-gen air pump technology to provide fast, effortless inflation (and deflation) for your on-water toys. Compact and shallow, ATMOS fits into almost any panel on board such as seating, consoles, or near the swim platform. Now you have ready-to-go air, right where it’s needed, for even more family fun on the water.
